Hydraulic Steering Unit 10 series is integral hydraulic steering unit, the valve body of rotary valve is integral structure, then the steering unit can integrate with cartridge valve, such as the pressure control valve of the integral system.
Hydraulic Steering Unit 10 series is widely used in the steering control system of different kinds of engineering vehicles, such as the steering system of many kinds of industrial and agricultural mobile machinery forklift, loader, road roller, tractor, combine harvester, and the ship helm etc. The steering unit can control the steering cylinder with bigger resistance force by inputting minor force; It’s easier , flexible and reliable; The integral check valve can prevent the system pressure oil from anti-vibration , and prevent from “hit-hand” during the steering operation; Integral pressure control valve can control the operation pressure and the shock pressure of the steering system

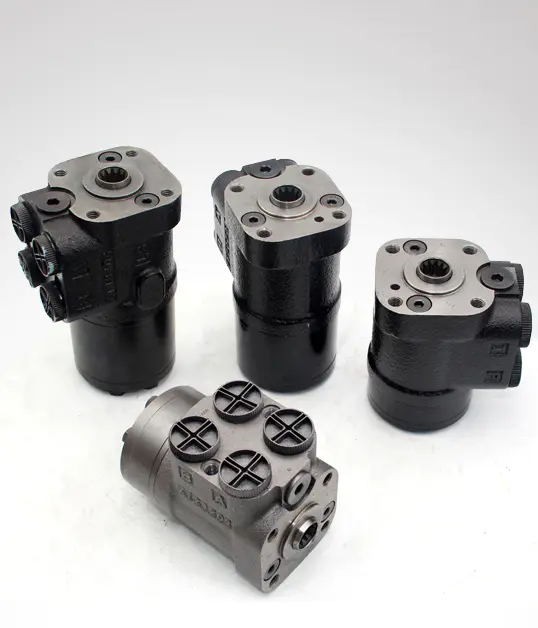

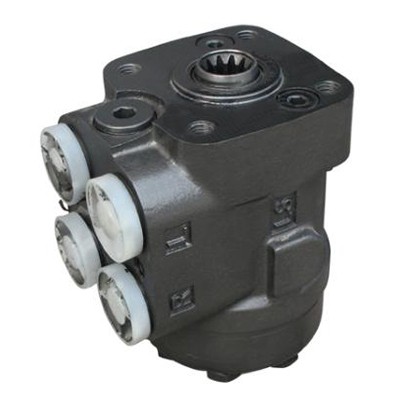

101S-1,2,3 Series Hydraulic Steering Control Units (SCU)
Main Specification
| Parameters | Type 101S-*-***-* | ||||||||||

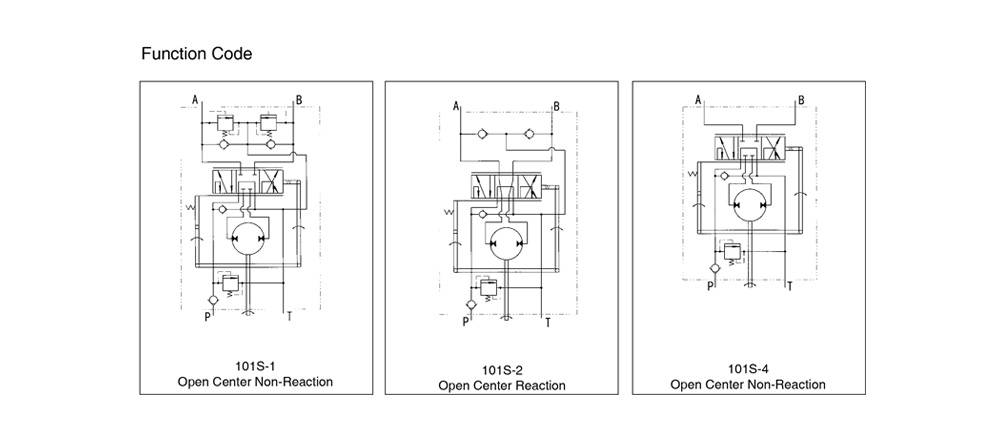

| Function Code | 1,2,3 | 1,3 | |||||||||
| Displacement(mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 31.5 | 40 |
| Max. input pressure (MPa) | 17.5 | ||||||||||
| Relief Valve Pressure Settings（Mpa） | 06,07,08,10,12,14,15,16,17.5 | ||||||||||
| Shock Valves Pressure Settings（Mpa） | 12,13,14,16,18,20,21,22,23.5 | ||||||||||
| Max. cont. back pressure (MPa) | 2.5 | ||||||||||
| Weight (kg) | 5.70 | 5.76 | 5.84 | 5.91 | 6.05 | 6.25 | 6.45 | 6.68 | 6.86 | 7.06 | 7.45 |
| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
| 1. Dust seal ring | 14. Spacer | 30. Complete relief valve |
| 2. Housing, spool and sleeve. Check valve and the seats for relief and shock valves are locktited. | 15. O-ring | 32. Complete shock valve |
| 3. Ball 8.5 mm [0.33 in] | 16. Distributor plate | 33. Ball 3/16 in |
| 4. Thread bushing | 17. Gearwheel set | 34. Rolled pin |
| 5. O-ring used with kin-ring (item 6) | 18. O-ring | 35. Ball |
| 6. Kin-ring | 19. End cover | 36. Bushing |
| 7. Bearing assembly | 20. Washer | 38. Spring |
| 10. Ring | 22. Special screw | 39. Kin ring |
| 11. Cross pin | 23. Screw | 40. O-ring |
| 12. Set of springs | 24. Name plate | |
| 13. Cardan shaft |
