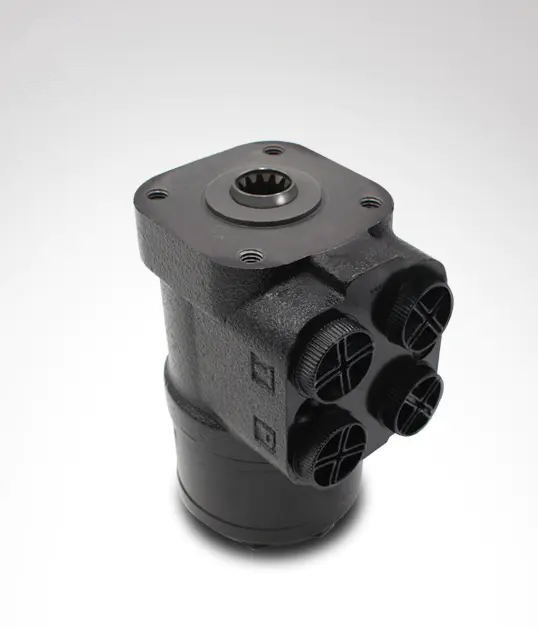

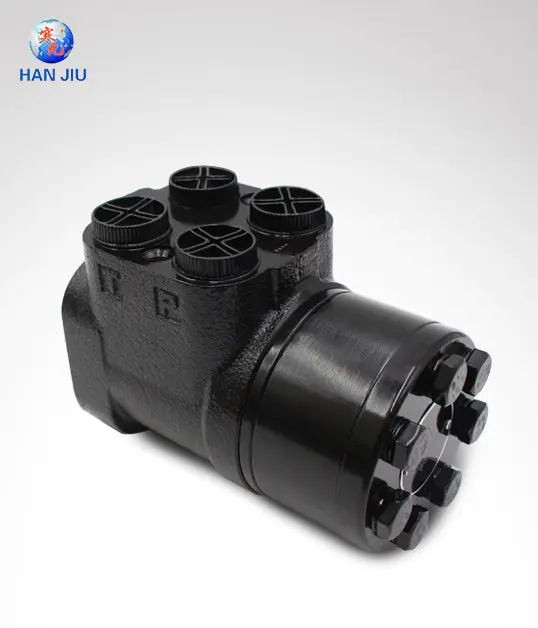

OSPB125 Hydraulic Orbital Steering

Productgroup: Steering Units

Productline: STEERING UNITS

Productset: OSPB steering units all versions from 50 to 199 cc/rev

Hydraulic Steering Unit 10 series is integral hydraulic steering unit, the valve body of rotary valve is integral structure, then the steering unit can integrate with cartridge valve, such as the pressure control valve of the integral system.

Hydraulic Steering Unit 10 series is widely used in the steering control system of different kinds of engineering vehicles, such as the steering system of many kinds of industrial and agricultural mobile machinery forklift, loader, road roller, tractor, combine harvester, and the ship helm etc. The steering unit can control the steering cylinder with bigger resistance force by inputting minor force; It’s easier , flexible and reliable; The integral check valve can prevent the system pressure oil from anti-vibration , and prevent from “hit-hand” during the steering operation; Integral pressure control valve can control the operation pressure and the shock pressure of the steering system.

101-1,2,3 Series Hydraulic Steering Control Units (SCU)

Parameters	Type 101--*-
Function Code	1,2,3							1,3
Displacement(mL/r)	50	63	80	100	125	160	200	250	280	315	400
Rated flow (L/min)	5	6	8	10	12.5	16	20	25	28	31.5	40
Max. input pressure (MPa)	17.5
Max. cont. back pressure (MPa)	2.5
Weight (kg)	5.70	5.76	5.84	5.91	6.05	6.25	6.45	6.68	6.86	7.06	7.45
Dimension L (mm)	130	132	134	137	140	145	150	156	161	166	176

Troubleshooting of Metering Pump

1. Dust seal ring	14. Spacer	30. Complete relief valve
2. Housing, spool and sleeve. Check valve and the seats for relief and shock valves are locktited.	15. O-ring	32. Complete shock valve
3. Ball 8.5 mm [0.33 in]	16. Distributor plate	33. Ball 3/16 in
4. Thread bushing	17. Gearwheel set	34. Rolled pin
5. O-ring used with kin-ring (item 6)	18. O-ring	35. Ball
6. Kin-ring	19. End cover	36. Bushing
7. Bearing assembly	20. Washer	38. Spring
10. Ring	22. Special screw	39. Kin ring
11. Cross pin	23. Screw	40. O-ring
12. Set of springs	24. Name plate
13. Cardan shaft
