User Manual

The installation and use of full hydraulic steering note

The installation and use of full hydraulic steering note

1  installation precautions:

  • (1) When installation steering gear must ensure coaxiality with column, must have a gap of 1 mm in the axial direction.

  • (2) The depth of screw connection to the steering column tightening steering column is ≤15mm.

  • (3) After steering gear installed, must check steering wheel turns to ensure the flexibility of the return position.

  • (4) Connection pipeline: P oil port connects to the oil supply pump, T oil port connects to the oil tank, and A and B oil ports respectively connect the left and right oil chambers of the steering gear.

2  oil flow rate considerations:

  • (1) The oil supply circuit connected to the P oil port, the oil flow rate in the pipe is recommended to be ≤1.5m/s.

  • (2) The pressure circuit of the oil cylinder connected to the A and B ports is recommended. The oil flow rate in the pipe is recommended to be ≤4~5m/s.

3  other matters needing attention:

  • (1) The diameter of the steering wheel must not exceed 500mm.

  • (2) A return filter with a filter accuracy of 30 μm should be installed in the return line of the steering gear. The position of tank is generally higher than installation position of steering gear, and return pipe is inserted below oil level, so oil can be filled only when the manpower is turned, and air can be prevented from entering the oil line.

  • (3) The oil viscosity of steering gear is 17cst~33cst. It is recommended to use low-condensation hydraulic oil. Steering gear allows normal working oil temperature 20°C to 80°C, and the limit working oil temperature range is -30°C to 100°C. Reminder: In case of abnormal oil temperature, steering performance will decrease.

  • (4) After steering system assembled, it shall be tested: clean oil tank before operation, inject hydraulic oil to the max oil level.Loosen cylinder nipple and allow pump to run at low speed until it is out of oil. Remove link,turn the steering wheel so that the piston reaches left or right position, and then fill the tank to specified level. Tighten all thread connections, connect the piston rod, and check if the steering system is working properly.

  • (5) It must be ensured that the oil is clean to prevent the dirt to cause steering failure. Always check the condition of the filter element and the oil. If necessary, give a replacement.

  • (6) If steering failure, must be carefully check the reason first. The steering wheel must not be pulled hard, and the steering gear should not be disassembled to avoid damage to parts. It is forbidden for two people to turn the steering wheel at the same time.


Troubleshooting of Metering Pump

MatterCausesTroubleshooting
Oil leakage between back cover, stator and valvesrear cover stator bolt looseness (or uneven force), or O-rings damagedEvenly tighten the bolt to the specified value, replace the seal (special)
Oil leakage at steering shaftshaft seal ring excessive wear or damageReplace the seal (dedicated)
feels light when turn the steering wheel slowly, feelsheavy when turn the steering wheel quicklysteering pump oil supply not enoughCheck whether oil pump is working properly,(Including liquid level,pump efficiency, pipeline patency, etc.)
There is foam in the oil,irregular sound, the steeringwheel turns and the cylinder does not moveThere is air in the steering systemEliminating the air in the system, Check the suction pipe leaks or not, Orif the return nozzle is below the liquid level
Heavy steering continues to occurTank fluid is below the specified positionAdd oil to prescribed height
Heavy oil viscosityUse oil as required
Feel heavy when turn fast and slow, stresslessCheck valve between P,T failureCheck the ball. lf the steel ball is missing, then insert the steel ball; lfthe ball gets stuck dirty,it should be cleaned; In both cases,it isnecessary to check the effectiveness of the sealing tape recovery.
Turns light when the load is light,turns heavier whenincreas the loadrelief valve pressure lower than steering requirementAdjust relief valve pressure to specified value (no more than 16MPa)
Relief valve stucked by dirt, Or spring failure,Or seal is damagedClean relief valve (required to check the effectiveness of seal taperecovery), or replace the spring or seal
steering wheel can't auto back to middle positionSpring broken or deformationReplacement spring
Steering wheel rotate automatic swing to left or rightRotor and linkage axes are not positioned correctlyStop immediately! Align the teeth of the linkage shaft with rotor splines
No end pointLow pressure on relief valveAppropriately increase relief valve pressure
Steering wheel rotates after turning to the end positionLow pressure on shock valvesAppropriately increase shock valves pressure
when machine is off, turn the wheel, cylinder not moveradial clearance or axial clearance is too large between radial and statorReplace rotor and stator
Low viscosity of oilChange oil
Vehicle deviation Or the cylinder is slow when turningthe steering wheelshock valves failure (ball caught by dirty, or spring failure, or seal damage)Clean shock valves,replace spring or seal
pressure of Steering system is able to adjustSpring brokenChange spring
not good seals at safety valve make the valve always openreplace parts
Valve core stuck due to burr or oil stainRemove, inspect, repair
Poor spool operationCheck if the spool is stuck by dirty
Spring bent or too softChange spring
Oil is not clean, valve plug orifice is blockedReplace the cleaning fluid and unblock the orifice
ressure of Steering system is able to adjustSpring brokenChange spring
not good seals at safety valve make the valve always openreplace parts
Valve core stuck due to burr or oil stainRemove, inspect, repair
Poor spool operationCheck if the spool is stuck by dirty
Spring bent or too softChange spring
Oil is not clean, valve plug orifice is blockedReplace the cleaning fluid and unblock the orifice

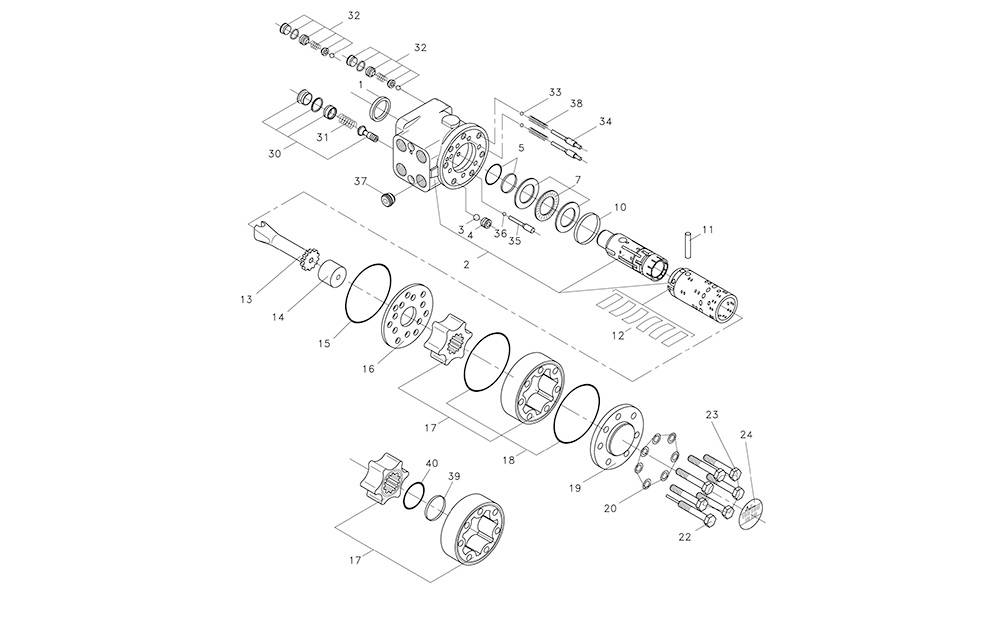

1. Dust seal ring 15. O-ring 33. Ball 3/16 in
2. Housing, spool and sleeve.
Check valve and the seats for relief and shock valves are locktited.
16. Distributor plate34. Rolled pin
3. Ball 8.5 mm [0.33 in]  17. Gearwheel set35. Ball
4. Thread bushing  18. O-ring36. Bushing
5. O-ring used with kin-ring (item 6)19. End cover38. Spring
6. Kin-ring20. Washer39. Kin ring
7. Bearing assembly22. Special screw40. O-ring
10. Ring 23. Screw
11. Cross pin 24. Name plate
12. Set of springs30. Complete relief valve
13. Cardan shaft  31. Spring wire
14. Spacer32. Complete shock valve
