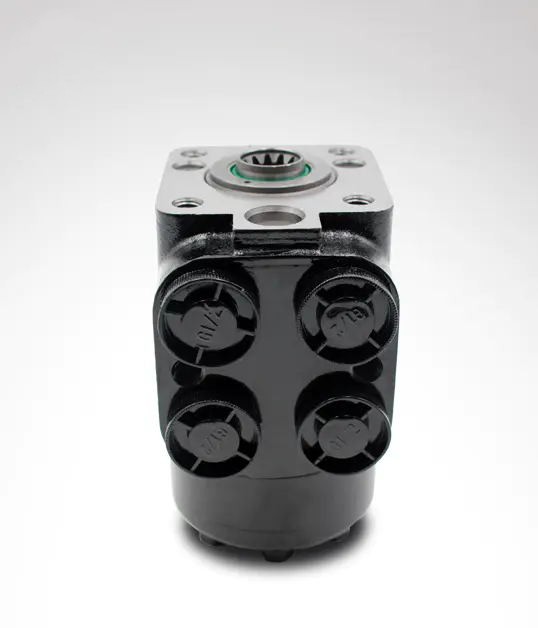

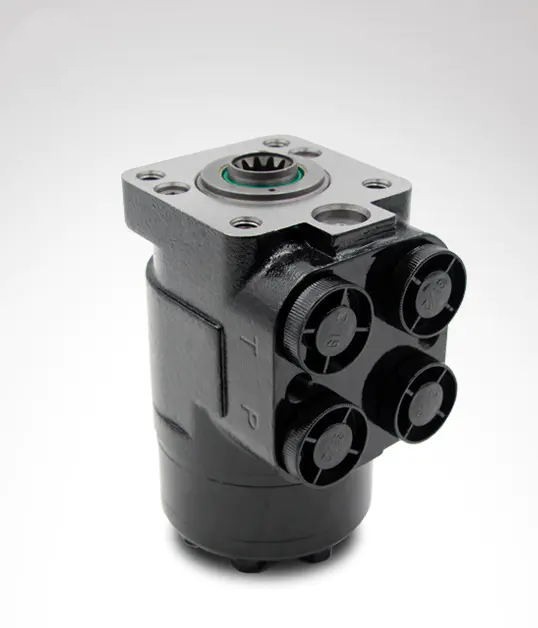

Hydraulic Steering Unit 060 Series

Function of the incorporated valve

Inlet safety valve: Limits maximum pressure drop across the PSU to protect the steering circuit.

Cylinder port shock valve: Protects hoses against pressure surge created by ground forces on the cylinder axle.

Anti- cavitation valve: Protects steering circuit against vacuum (cavitation) conditions.

Inlet check valve: Prevents oil from returning through the PSU when pressure on the cylinder

side is greater than the inlet side. It prevents steering wheel kick.

Internal check valve: Converts the PSU to a hand operated pump for limited manual steering.

Parameters	Type 060----*

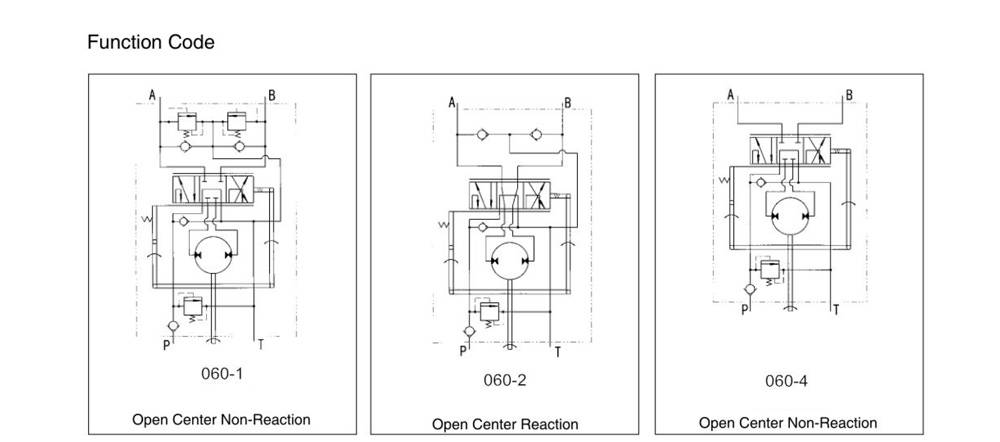

Function Code	1,2,4							1,4
Displacement (mL/r)	50	63	80	100	125	160	200	250	280	315	400
Rated flow (L/min)	5	6	8	10	12.5	16	20	25	28	32	40
Max.input pressure (MPa)	17.5
Relief Valve Pressure Settings (MPa)	06,07,08,10,12,14,15,16,17.5
Shock Valves Pressure Sttings (MPa)	12,13,14,16,18,20,21,22,23.5
Max.cont.back pressure (MPa)	2.5
Weight (kg)	5.75	5.81	5.89	5.96	6.1	6.3	6.5	6.73	6.91	7.1	7.5
Dimension L (mm)	130	132	134	137	140	145	150	156	161	166	176

1. Dust seal ring	14. Spacer	30. Complete relief valve
2. Housing, spool and sleeve. Check valve and the seats for relief and shock valves are locktited.	15. O-ring	31. Spring wire
3. Ball 8.5 mm [0.33 in]	16. Distributor plate	32. Complete shock valve
4. Thread bushing	17. Gearwheel set	33. Ball 3/16 in
5. O-ring used with kin-ring (item 6)	18. O-ring	34. Rolled pin
6. Kin-ring	19. End cover	35. Ball
7. Bearing assembly	20. Washer	36. Bushing
10. Ring	22. Special screw	38. Spring
11. Cross pin	23. Screw	39. Kin ring
12. Set of springs	24. Name plate	40. O-ring
