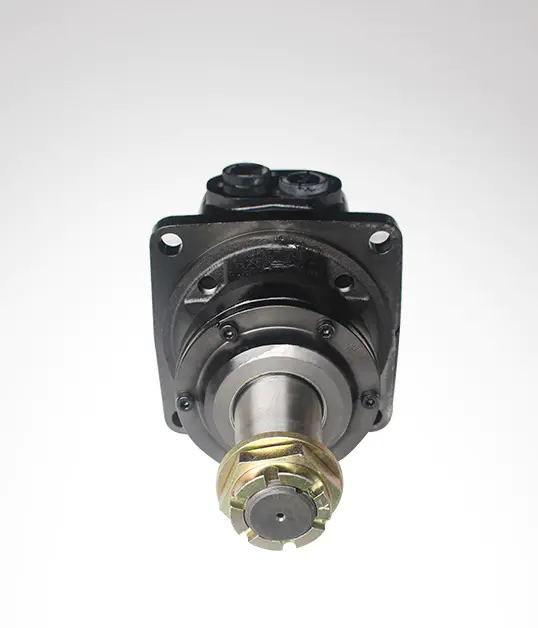

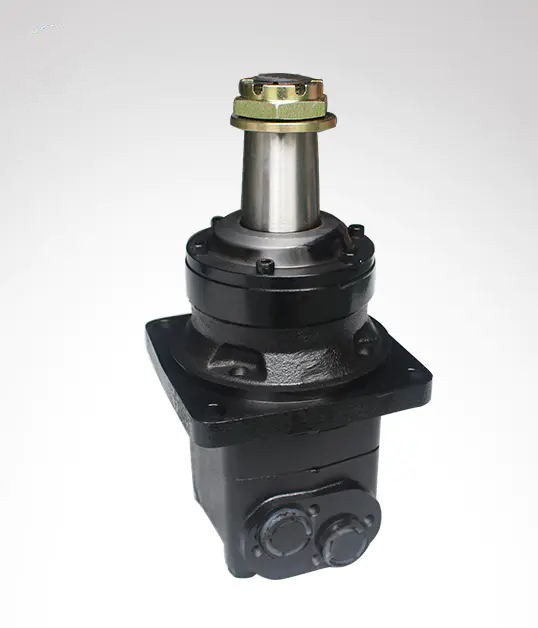

Danfoss Orbital Motor OMVW 315 151B3120

OMV motor series technical information
Capacities 315cc to 800 cc/rev
Speeds 0 - 500 rpm
OMV315
OMV500
OMV630
OMV800
OMV1000

OMV series motor adapt the advanced Geroler gear set designed with disc distribution

flow and high pressure.The unit can be supplied the individual variant in operating

multifunction in accordance with requirement of applications.

Characteristic features:

* Advanced manufacturing devices for the Geroler gear set,which use low pressure of startup, provide smooth and reliable operation and high efficiency.

* The output shaft adapts in tapered roller bearings that permit high axial and radial forces.

The case can offer capacities of high pressure and high torque in the wide of applications.

* Advanced design in disc distrbution flow, which can automatically compensate in operating

with high volume efficiency and long life, provide smooth and reliable operation.

Type		OMV 315	OMV 400	OMV 500	OMV 630	OMV 800	OMV 1000
Displacement (cc/rev)		333	419	518	666	801	990
Max torque (n.m)	cont	920	1180	1460	1660	1880	2015
Max torque (n.m)	int	1110	1410	1760	1940	2110	2280
Max pressure (Mpa)	cont	20	20	20	18	16	14
Max pressure (Mpa)	int	24	24	24	21	18	16
Max speed rate (rpm)	cont	510	500	400	320	250	200
Max speed rate (rpm)	int	630	600	480	380	300	240
Max flow (L/min)	cont	160	200	200	200	200	200
Max flow (L/min)	int	200	240	240	240	240	240
Weight (kg)		31.8	32.6	33.5	34.9	36.5	38.6
