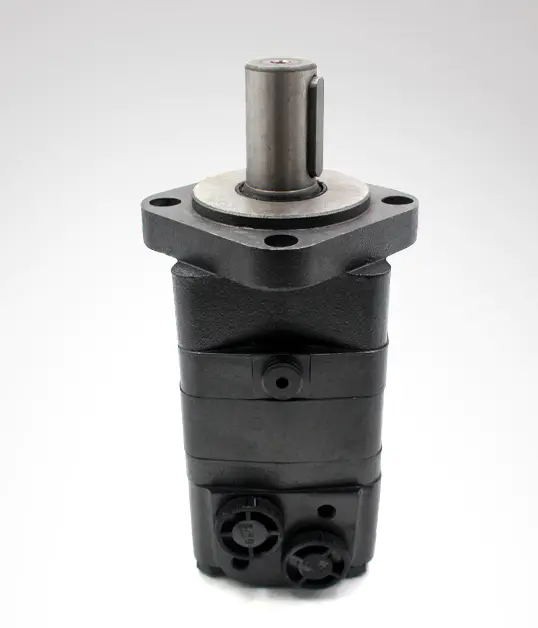

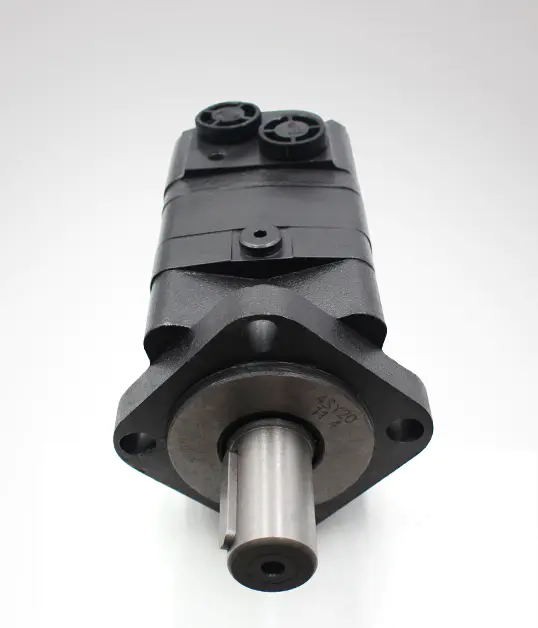

Hydraulic Motor OMS400

Displacement [80 -500 CC]
Max. cont. pressure [210 bar]
Max. cont. torque [865 Nm]
Max. cont. flow [75 lpm]

OMS new series motor adapt the advanced Geroler gear set designed with disc distribution flow

and high pressure.The unit can be supplied the individual variant in operating multifunction in

accordance with requirement of applications.

Characteristic featutres:

* Advanced manufacturing devices for the Geroler gear set, which use low pressure of start-up, provide smooth and

reliable operation and high efficiency.

* The output shaft adapts in tapered roller bearings that permit high axial and radial forces. The case can offers

capacities of high pressure and high torque in the wide of applications.

* Advanced design in disc distribution flow, which can automatically compensate in operating with high volume

efficiency and long life , provide smooth and reliable operation.

* The new series motor is suitable for vehicles with greater loads and pressure drop.
