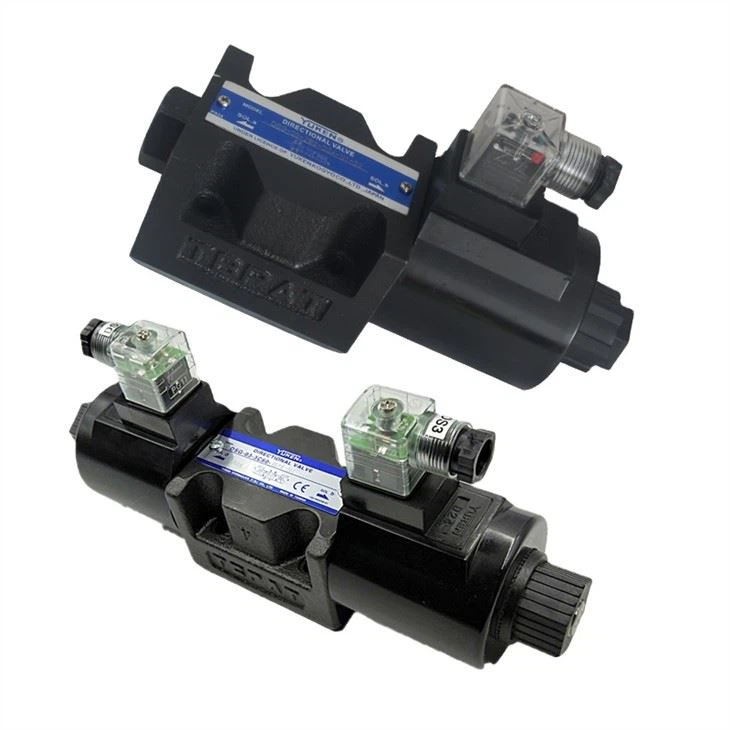

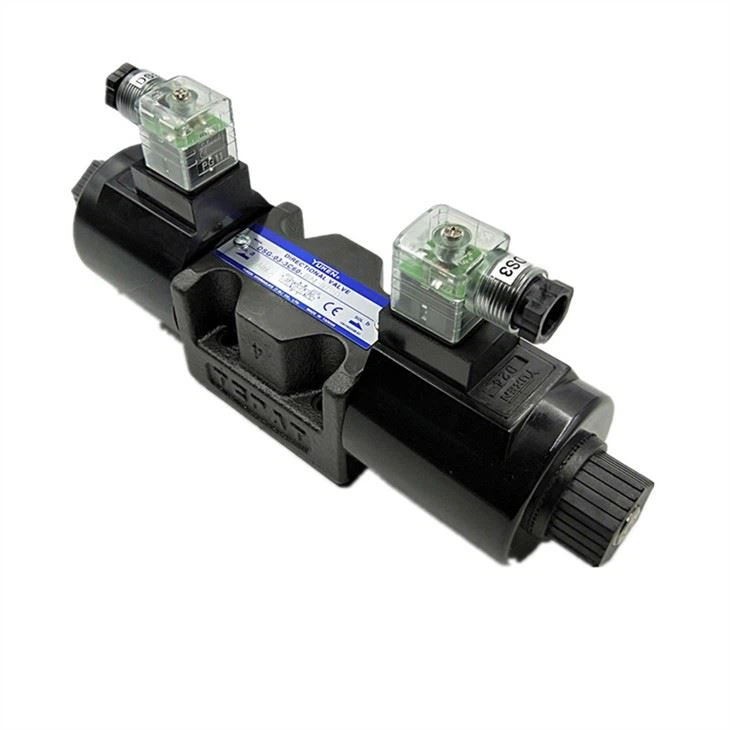

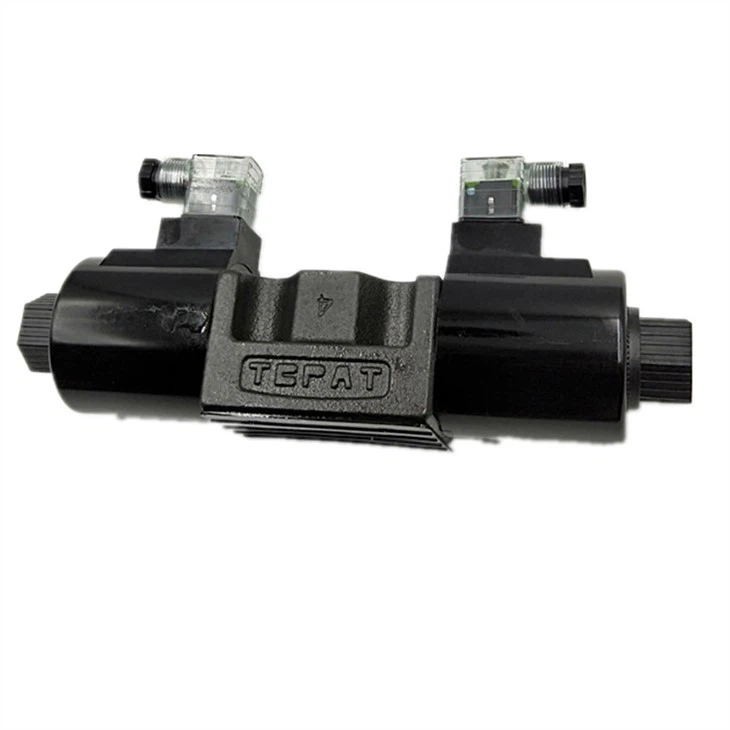

Yuken DSG-01 Series Valve

Features:

• High Pressure & High Flow Rate In comparison to our existing lines, both the pressure and flow of these valves are much increased.

• Max. Operating Pressure: approx. 10 % increased [31.5→35 MPa(4570 →5080 PSI)]

• Max. T-Line Back Pressure: approx. 30 % increased [16→21 MPa(2320 →3050 PSI)]

• Max. Flow Rate: approx. 60 % increased [63→100 L/min (16.64→26.42 U.S.GPM)]

• Low Pressure Drop The pressure drop of these valves is reduced by 10 % from 1.0 to 0.9 MPa (145 to 131 PSI), in comparison to our existing lines*; the valves effectively reduce the energy consumption of the unit. {* At Flow Rate: 60 L/min (15.9 U.S.GPM), Spool Type: 3C2 (P→A)}

• Compact & Small Mass Despite the high pressure, high flow and low pressure drop, these valve bodies are compact and lightweight with DC double solenoids; the overall length and mass are reduced from 210 to 205 mm (8.26 to 8.07inch) and from 2.2 to 1.85 kg (4.85 to 4.08 lbs), respectively.

• Stable Operation Due to the powerful magnetic and spring force of the solenoids, these valves exhibit a high tolerance to contaminants and especially stable operation.

• IP65-equivalent High Dust- & Water-proof These valves demonstrate excellent dust- and water-proof characteristics, in compliance with I. E. C. Pub. 529. IP65 and JIS C0920 IP65 (dust- and jet-proof type).

• Usable In Products Of Various Standards These standard valves are CE certified for installation in equipment overseas. UL/CSA certified products are also available.
