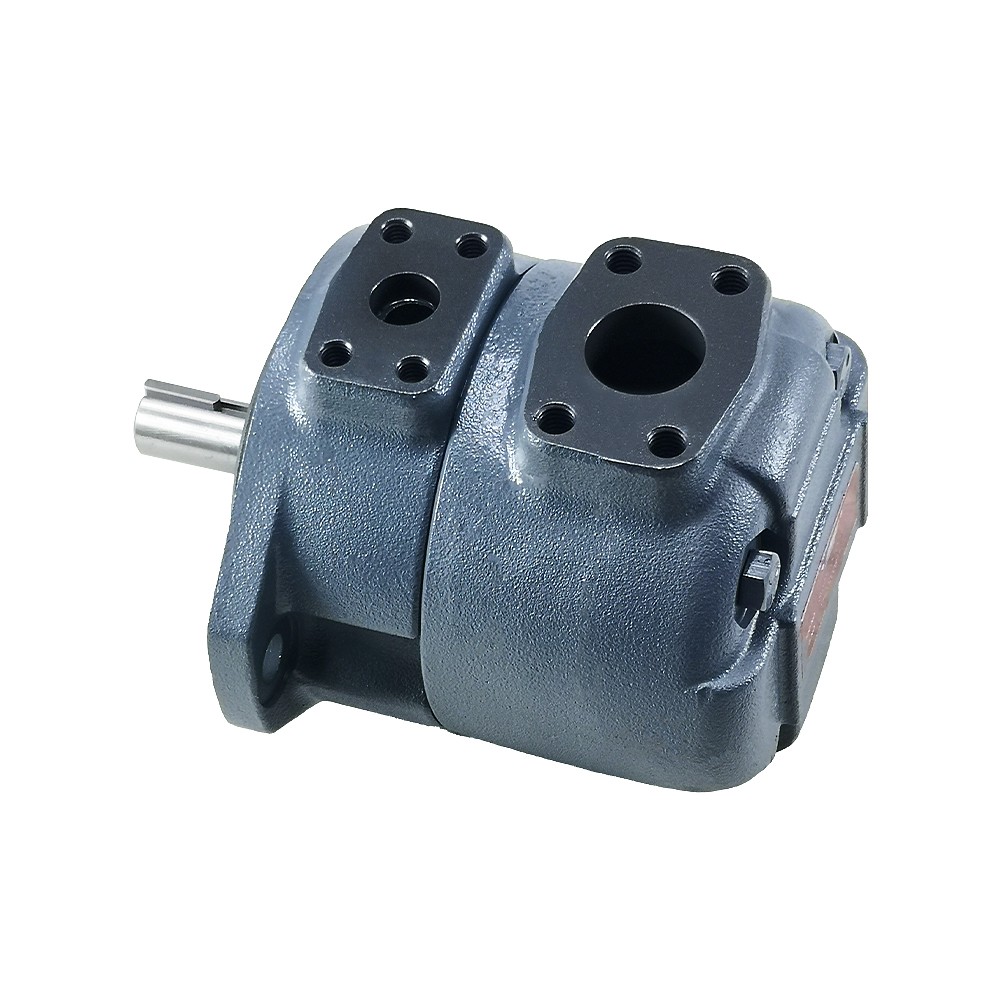

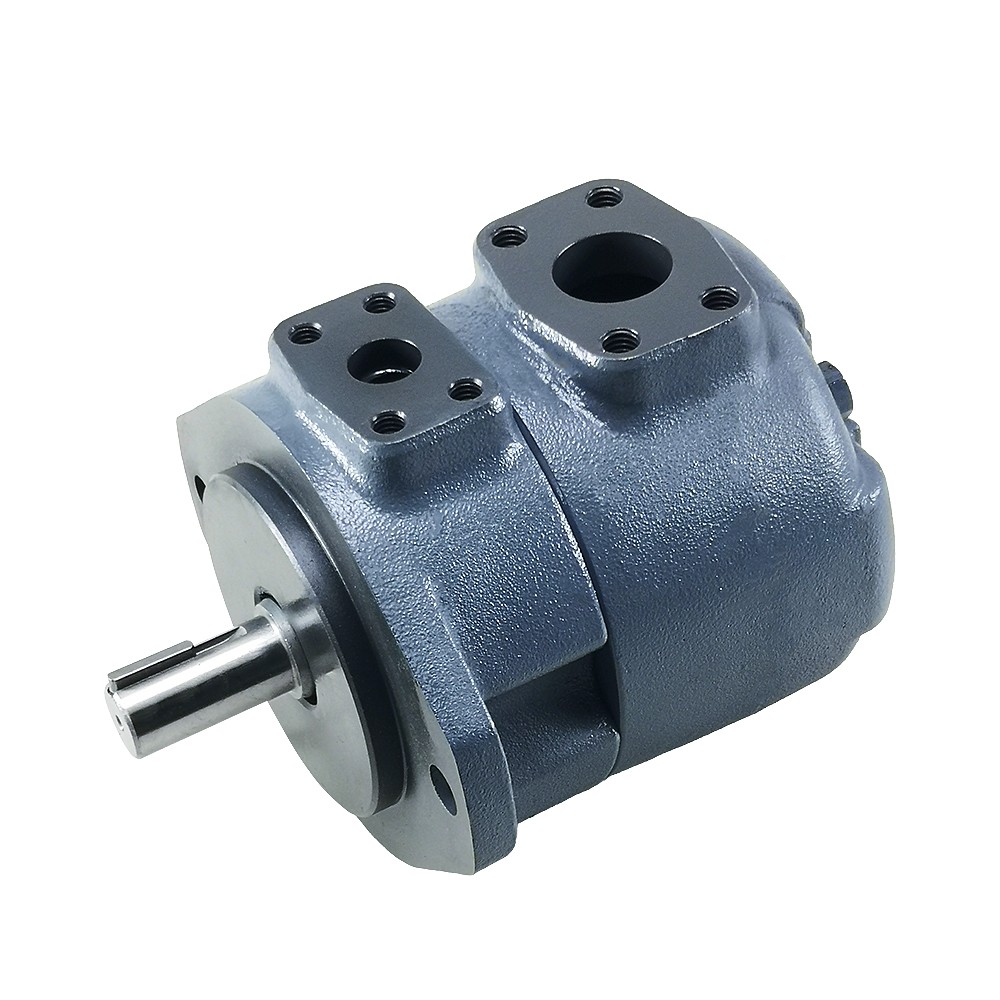

Tokimec SQP Hydraulic Vane Pump

Hydraulic Fixed Displacement Tokimec SQP vane pump
Tokimec SQP single vane pump: SQP1 SQP2 SQP3 SQP4
Tokimec SQP double vane pump: SQP21 SQP31 SQP32 SQP41 SQP42 SQP43
Tokimec SQP triple vane pump: SQP211 SQP311 SQP321 SQP421 SQP431 SQP432

The Tokimec SQP hydraulic vane pumps feature low noise and are offered in 4 frame sizes, 16 series, 32 models of different displacements and as triple pump which allow user to select the combination which best matches their circuit for optimum energy efficiency.

1. Offers very quiet and “soft” operational noise levels.

2. Multiple pump combinations of differing displacements permits simpler circuit designs compared to system using one large displacement pump and provide greater flexibility in circuit design with benefit of low noise levels.

3. Rotation element is in cartridge kit from which allows simple maintenance.
